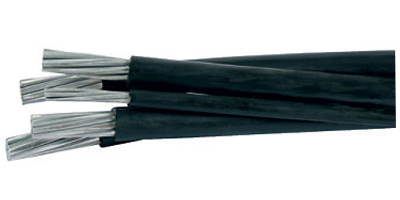

600 / 1000V Low Voltage Aerial Bundled Cable DES LVC IEC 60502 ABC 4X25 4X35

Name: 600 1000V Low Voltage Aerial Bundled Cable DES LVC IEC 60502 ABC 4X25 4X35
Brand: UNI-CABLES
Price: 1 USD

Brand Name : UNI-CABLES

Model Number : ABC 4X35

Certification : ISO9001

Place of Origin : CHINA

MOQ : 5 km

Price : Negotiable

Delivery Time : 15-20 working days

Packaging Details : 2 km per reel

Conductor : Aluminum 1350

Insulation : XLPE

Voltage : 600V

Temperature : 0°C to 75°C

Contact Now

600/1000V Aerial Bundled Cables to DES/LVC/ABC & IEC 60502 ABC 4X25 4X35

APPLICATION

For use in low voltage distribution system intended for urban and rural electrification schemes, for consumer connection derived from the distribution system.

For aboveground distribution grids, primarily for public distribution grids with a highest mains voltage not above 1,2 kV.

Standard

IEC60502

Construction

Conductor (for either phase, neutral or street lighting)	The conductors shall be of H68 aluminium conductor and compacted circular stranded (RM).
Insulation	XLPE.
Assembly	The cores shall be laid up with a left-hand lay.

Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -20
Operating temperature	°C	50
Conductor temperature	°C	max. +80
Short-circuit temperature	°C/s	max. +130 /5
Bending radius (min.)	mm	18 × O of cable

DIMENSIONS

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm2	kN	A	mm	kg/km
4x25 RM	3.5	84	21.5	420
4x35 RM	4.9	104	23.9	550
4x120+1x25 RM	16.8	246	43.8	1800
4x185+1x25 RM	25.9	332	50.7	2700
