HD626 S1 Aerial Bundled Cable AL/XLPE ABC for 600/1000V Overhead Lines
APPLICATION
For use in low voltage distribution system intended for urban and rural electrification schemes, for consumer connection derived from the distribution system.
For aboveground distribution grids, primarily for public distribution grids with a highest mains voltage not above 1,2 kV.
Standard
HD 626 S1
Construction
Conductor: Aluminum Conductor,Round stranded compresses
Insulation:XLPE
Technical Data
Rated voltage | kV | 0.6/1 |
Test voltage | Veff kV/Hz | 4/50 |
Laying temperature | °C | min. -20 |
Operating temperature | °C | -30 +80 |
Conductor temperature | °C | max. +80 |
Short-circuit temperature | °C/s | max. +130 /5 |
Bending radius (min.) | mm | 18 × O of cable |
DIMENSIONS
Number of cores x nominal cross section | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
mm^2 | kN | A | mm | kg/km |
2x 16 RM | 1,910 | 2,5 | 72 | 147 |
2x 25 RM | 1,200 | 4,0 | 107 | 208 |
2x 35 RM | 0,868 | 5,5 | 132 | 277 |
2x 50 RM | 0,641 | 8,0 | 165 | 361 |
4x 16 RM | 1,910 | 2,5 | 72 | 286 |
4x 25 RM | 1,200 | 4,0 | 107 | 430 |
4x 35 RM | 0,868 | 5,5 | 132 | 553 |
4x 50 RM | 0,641 | 8,0 | 165 | 746 |
4x 70 RM | 0,443 | 10,7 | 205 | 1009 |
4x 95 RM | 0,320 | 13,7 | 240 | 1332 |
4x 120 RM | 0,253 | 18,6 | 290 | 1632 |
4x 35 + 1x 35 RM | 0,868/0,868 | 5,5/5,5 | 132/132 | 694 |
4x 50 + 1x 25 RM | 0,641/1,200 | 8,0/4,0 | 165/107 | 814 |
4x 50 + 1x 35 RM | 0,641/0,868 | 8,5/5,5 | 165/132 | 845 |
4x 70 + 1x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 1105 |
4x 70 + 2x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 1217 |
4x 70 + 1x 35 RM | 0,443/0,868 | 10,7/5,5 | 205/132 | 1150 |
4x 70 + 2x 35 RM | 0,443/0,868 | 10,7/5,5 | 205/132 | 1289 |
4x 95 + 1x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 1438 |
4x 95 + 1x 35 RM | 0,320/0,868 | 13,7/5,5 | 240/132 | 1467 |
4x 95 + 2x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 1544 |
![]() |

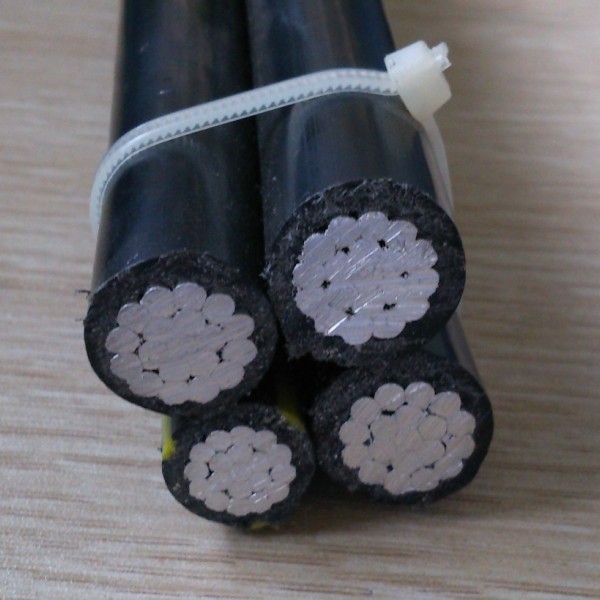

HD626 S1 Aluminum 1350-H19 Overhead Lines AL XLPE ABC For 600 / 1000V Images |
