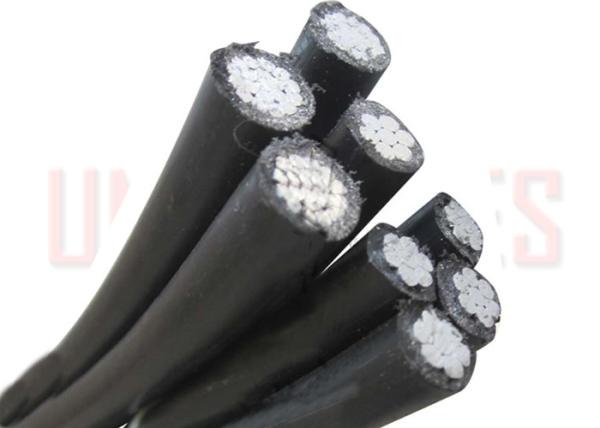

IS 14255 India Standard Aerial Bundled Cable , Street Light Neutral AAAC Cable

Name: IS 14255 India Standard Aerial Bundled Cable Street Light Neutral AAAC Cable
Brand: UNI-CABLES
Price: 1 USD

Brand Name : UNI-CABLES

Model Number : IS 14255 ABC

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1km

Price : Negotiable

Supply Ability : 1000000 per week

Delivery Time : 15-20 Working Days

Packaging Details : 2km per reel

Conductor : Aluminum 1350-H19

Insulation : XLPE

Voltage : 600V

Temperature Rating : 0°C to 75°C

Color Identification : Ribs

Cores : 1-6

Contact Now

IS 14255 India Standard Aerial Bundled Cable with AAAC Neutral and Street Light

APPLICATION

The Areial Bundled Cable are designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminum phase conductors are helically wound over it. Street light wire are available according to requirement.

The main advantage of aerial bundled cables included

1.Easy of erection and stringing.

2.Practically no tree-trimming required

3.Less maintenance.

Construction

Phase Conductor	H68 condition aluminium conductor, round stranded compressed.
Neutral or Messenger Conductor	Alloy aluminium conductor, round stranded compressed.
Street Lighting Conductor	H68 condition aluminium conductor, round stranded compressed.
Insulation	PE.
Assembly	The cable consists of insulated phase and street lighting aluminium conductors, shall be held firmly onto the insulated neutral messenger aluminium alloy conductor in a right hand (Z) lay.

Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -20
Operating temperature	°C	-30 +80
Conductor temperature	°C	max. +80
Short-circuit temperature	°C/s	max. +130 /5
Bending radius (min.)	mm	18 × O of cable

DIMENSIONS

Nom. Area	Max. D.C Conductor Resistance At 20 Deg. C	Nom. Thickness Of Insulation XLPE/PF	Nom. Area	Max. D.C Conductor Resistance At 20 Deg. C	Nom. Thickness Of Insulation XLPE/PE	Nom. Area	Max. D.C Conductor Resistance At 20 Deg. C	Min. Breaking Load
Sqmm	Ohm/Km	mm	Sqmm	Ohm/Km	mm	Sqmm	Ohm/Km	KN
16	1.91	1.2	16	1.91	1.2	25	1.38	7
25	1.2	1.2	16	1.91	1.2	25	1.38	7
35	0.868	1.2	16	1.91	1.2	25	1.38	7
50	0.641	1.5	16	1.91	1.2	35	0.986	9.8
70	0.443	1.5	16	1.91	1.2	50	0.689	14
95	0.32	1.5	16	1.91	1.2	70	0.492	19.7
