LSZH 0.6 / 1KV Micc Cable ISO9001 Class 2 Separated Flexible Unarmoured

Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

LSZH 0.6 / 1KV Micc Cable ISO9001 Class 2 Separated Flexible Unarmoured

Brand Name : UNI-CABLES

Model Number : BBTRZ

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1000 Meters

Price : Negotiable

Supply Ability : 10000 Meters per Week

Delivery Time : 15-20 working days

Packaging Details : In Wooden reels

Voltage Rating (Uo/U) : 0.6/1KV

Temperature Rating : -10°C to 150°C

Conductor : Class2 Stranded Copper

Insulation : inorganic insulating material

Sheath : LSZH

Jacket : LSZH

Contact Now

MI Cable Mineral Insulated Cable Mineral Separated Flexible Un Armoured Cable

APPLICATION

Such cable body doesn’t burn, in case of fire, which will not produce any toxic or harmful gases, it can keep the circuit integrity at the scene of the fire, which can continue to supply electricity to provide emergency lighting and fire-fighting equipments, therefore, such new product is widely used in high-rise even super high-rise buildings, crowded places, large programs, which is also used in such complicated installation environment for metallurgy, mine etc

Product Name : flame retardant MI cable BTTZ/BTTQ/BTLY fireproof mineral insulated cable

Product standard : DIN VDE 0295 and IEC 228 standard twisted copper wires,GB5023.6-2012 and company standard

Core 1 2 3 4 5 3+1 3+2 4+1 Cores

Working life <25years

Type of conductor copper,class 5

Material of conductor fine strands of oxygen-free Copper

Material of insulation mineral compound (MgO)

Color of core insulation Red/White/Blue/Black/Green/Yellow(Optional)

Material of Sheath low smorke halogen free Polyolefine(LSZH/LSOH PO)

Voltage 600~1000 VOLTS

Advantage Down to depths 500 mtrs

Section 0.25mm2~95.00mm2/AWG1~AWG14

Minimum bending radius Cable installtion allowed bending radius should no less than 6 times of cable wideth

Flame resistance pass GB/T18380.1-2001 test and GB5023.6-2012

Isolated sheath Aluminum(AL)

Application:

Public service

Railway stations, road & rail tunnels, public lighting, car parks, public service buildings.

Property & personal safety

Shopping malls, airports, underground rail systems, schools, hospitals, hotels, theatres, churches.

High temperature situation

Foundries, power stations, boiler houses, iron & steel industries, marine & ship buildings.

Potentially explosive area

Refineries, chemical plants, oil & gas production, filling stations, processing plants, garages.

Hygiene situation

Food & drink processing, pharmaceutical works, hospitals, kitchens, refrigeration plants.

General installation

Power distribution & sub circuits, fire alarms & emergency, lifts & escalators lighting, lighting & power.


Special Characteristics:

Fire resistant

Will neither burn or support combustion. Comply with the requirements of IEC 60331 and BS 6387.

High operation temperature

Continuous operating temperature up to 250 °C, and for short periods up to approaching the melting point of copper 1083 °C.

Inherent flameproof barrier

With a non-flammable sheath the high compacted insulation will resist the transmission of vapors, gases or flames.

High mechanical strength

Really robust and can withstand a considerable amount of stresses such as, twisting, bending and flattening.

Pliable

Fully annealed and extremely ductile and easily manipulated to follow existing wiring routes and irregular shapes.

Non-ageing, Integral earth continuity, Small overall diameter

Waterproof, Corrosion resistant, Radiation resistant

Excellent electric shielding, Easy installation, Long service life

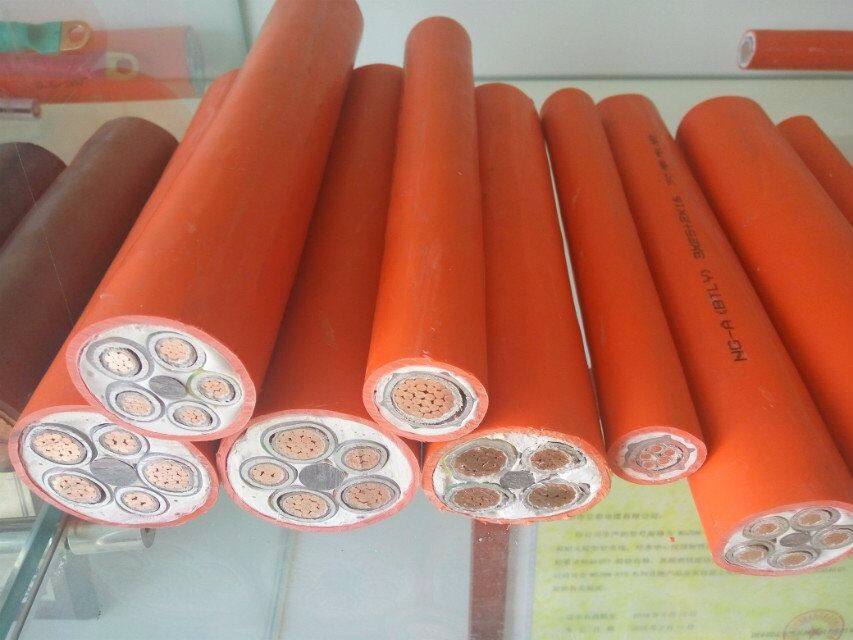

LSZH 0.6 / 1KV Micc Cable ISO9001 Class 2 Separated Flexible Unarmoured
