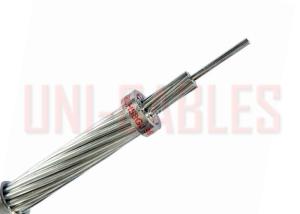

Power Transmission AAAC Conductor All Aluminium Alloy 6201 - T81 Overhead Line

Product Categories
Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

Power Transmission AAAC Conductor All Aluminium Alloy 6201 - T81 Overhead Line

Brand Name : UNI-CABLES

Model Number : AAAC

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Metric-Tons

Price : USD$3100-3300 Per MT

Supply Ability : 100000MT per Month

Delivery Time : 15-20 days

Packaging Details : 1 MT per Wooden Reel

Conductor : AL6201-T81

Voltage : High Voltage

Size : 10 to 1400mm2

Standard : International Standard

No. of Wires : 7-91

Density : 2.69

Contact Now

AAAC Conductor All Aluminium Alloy Overhead Power Transmission Line

APPLICATION
AAAC is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC/ACSR.

CABLE STANDARDS
ASTM - B 399 Metric Units, ASTM - B 231, TS IEC 1089,
DIN 48201, BS 215, UNE 21.018

DIMENSIONS

American Standard
All Aluminum Alloy 6201-T81 Conductors ( AAAC )
Code
Name		 Total Area 1350 Grade Equivalent
(Approx)		 Stranding Conductor
Nominal
Diameter		 Nominal
Weight		 Rated
Strength		 Maximum DC
resistance
at 20 ℃
AWG or
MCM		 mm2 AWG or MCM No/ mm mm kg/km kN Ω /km
Akron 30.58 15.52 6 7 x 1.68 5.04 43 4.92 2.1588
Alton 48.69 24.71 4 7 x 2.12 6.36 68 7.83 1.3557
Ames 77.47 39.19 2 7 x 2.67 8.01 108 12.42 0.8547
Azusa 123.3 62.44 1 7 x 3.37 10.11 171 18.88 0.5365
Anaheim 155.4 78.55 2/0 7 x 3.78 11.34 216 23.75 0.4264
Amherst 195.7 99.3 3/0 7 x 4.25 12.75 272 30.03 0.3373
Alliance 246.9 125.1 4/0 7 x 4.77 14.31 343 37.83 0.2678
Butte 312.8 158.6 266.8 19 x 3.26 16.3 435 46.46 0.2112
Canton 394.5 199.9 336.4 19 x 3.66 18.3 548 58.56 0.1676
Cairo 465.4 236.4 397.5 19 x 3.98 19.9 649 69.25 0.1417
Darien 559.5 283.57 477 19 x 4.36 21.8 778 83.1 0.1181
Elgin 652.6 331 556.5 19 x 4.71 23.55 908 96.98 0.1012
Flint 740.8 374.5 636 37 x 3.59 25.13 1028 107.36 0.0894
Greeley 927.2 469.6 795 37 x 4.02 28.14 1289 134.62 0.0713

ASTM Standard
All Aluminum Alloy 6201-T81 Conductors ( AAAC )
Code
Name		 Total Area 1350 Grade Equivalent
(Approx)		 Stranding Conductor
Nominal
Diameter		 Nominal
Weight		 Rated
Strength		 Maximum DC
resistance
at 20 ℃
AWG or
MCM		 mm2 AWG or MCM No/ mm mm kg/km kN Ω /km
6 13.28 9 7 7 / 1.554 4.66 36 4.206 2.523
4 21.14 7 11 7 / 1.961 5.88 58 6.698 1.5844
2 33.65 5 18 7 / 2.474 7.42 92 10.66 0.9955
0 53.48 3 28 7 / 3.119 9.36 147 16.94 0.6263
2/0 67.46 2 35 7 / 3.503 10.51 185 20.4 0.4965
3/0 85 1 45 7 / 3.932 11.8 233 25.7 0.3941
4/0 107.3 1/0 56 7 / 4.417 13.25 294 32.44 0.3123
250 126.6 133 66 19 / 2.913 14.57 347 38.86 0.2645
300 152.1 159 80 19 / 3.193 15.97 417 46.69 0.2202
350 177.3 186 93 19 / 3.447 17.24 486 51.94 0.1889
400 202.7 212 106 19 / 3.686 18.43 556 59.39 0.1652
450 228 239 120 19 / 3.909 19.55 626 66.8 0.1469
500 253.3 265 133 19 / 4.12 20.6 695 74.2 0.1322
550 278.5 292 146 37 / 3.096 21.67 764 83.65 0.1203
600 303.7 318 159 37 / 3.233 22.63 833 91.21 0.1103
650 329.2 345 173 37 / 3.366 23.56 903 94.38 0.1017
700 354.6 371 186 37 / 3.493 24.45 973 101.63 0.09448
750 380.2 398 200 37 / 3.617 25.32 1043 108.98 0.08811
800 405.2 425 213 37 / 3.734 26.14 1112 116.14 0.08268
900 456.2 478 240 37 / 3.962 27.73 1252 130.76 0.07343
1000 506.8 531 266 37 / 4.176 29.23 1390 145.27 0.0661

British Spec BS3242
All Aluminum Alloy Conductors ( AAAC )
Code
Name		 Nominal
Aluminum Area		 Equivalent Copper
Area		 Stranding Overall
Diameter		 Total Area Weight Rated
Strength		 Maximum DC
Resistance
at 20oC
mm2 mm2 No./mm mm mm2 kg/km kN Ω /km
- 10 6.24 7/1.47 4.41 11.88 32 3.33 2.771
Box 15 9.88 7/1.85 5.55 18.82 51 5.27 1.75
Acacia 20 12.5 7/2.08 6.24 23.79 65 6.67 1.384
Almond 25 15.8 7/2.34 7.02 30.1 82 8.44 1.094
Cedar 30 18.6 7/2.54 7.62 35.47 97 9.94 0.9281
- 35 22.1 7/2.77 8.31 42.18 115 11.82 0.7804
Fir 40 25.1 7/2.95 8.85 47.84 131 13.4 0.688
Hazel 50 31.4 7/3.30 9.9 59.87 164 16.8 0.5498
Pine 60 37.6 7/3.61 10.83 71.65 196 20.08 0.4595
- 70 44.1 7/3.91 11.73 84.05 230 23.56 0.3917
Willow 75 47.1 7/4.04 12.12 89.73 245 25.15 0.3669
- 80 50.7 7/4.19 12.57 96.52 264 27.05 0.3411
- 90 57.2 7/4.45 13.35 108.9 298 30.51 0.3024
Oak 100 62.4 7/4.65 13.95 118.9 325 33.3 0.2769
- 100 62.3 19/2.82 14.1 118.7 326 33.26 0.2788
Mulberry 125 79.2 19/3.18 15.9 150.9 415 42.29 0.2192
Ash 150 94.9 19/3.48 17.4 180.7 497 50.65 0.183
Elm 175 111 19/3.76 18.8 211 580 59.1 0.1568
Poplar 200 126 37/2.87 20.09 239.4 659 67.08 0.1385
- 225 142 37/3.05 21.35 270.3 744 75.76 0.1226
Sycamore 250 159 37/3.23 22.61 303.2 835 84.97 0.1094
Upas 300 190 37/3.53 24.71 362.1 997 101.5 0.09155
- 350 221 37/3.81 26.67 421.8 1162 118.2 0.0786
Yew 400 251 37/4.06 28.42 479 1319 134.2 0.0692

DIN Spec DIN48021
All Aluminum Alloy Conductors ( AAAC )
Area Equivalent
Copper Area		 Stranding Overall
Diameter		 Weight Rated
Strength		 Maximum DC
Resistance
at 20oC
Nominal Actual
mm2 mm2 mm2 No/mm mm kg/km kN Ω /km
16 15.89 8 7/1.7 5.1 43 4.44 2.09
25 24.25 13 7/2.1 6.3 66 6.77 1.369
35 34.36 18 7/2.5 7.5 94 9.6 0.9665
50 49.48 26 7/3.0 9 135 13.82 0.6711
50 48.36 25 19/1.8 9 133 13.5 0.6902
70 65.82 35 19/2.1 10.5 181 18.38 0.5071
95 93.27 49 19/2.5 12.5 256 26.05 0.3578
120 117 61 19/2.8 14 322 32.68 0.2852
150 147.1 77 37/2.25 15.75 406 41.09 0.2273
185 181.6 95 37/2.5 17.5 500 50.73 0.1842
240 242.5 127 61/2.25 20.25 670 67.74 0.1382
300 299.4 157 61/2.5 22.5 827 83.63 0.1119
400 400.1 210 61/2.89 26.01 1104 111.76 0.08377
500 499.8 262 61/3.23 29.07 1379 139.6 0.06706
625 626.2 329 91/2.96 32.56 1732 174.9 0.05365
800 802.1 421 91/3.35 36.85 2218 224.02 0.04188
1000 999.7 525 91/3.74 41.14 2767 279.22 0.0336

IEC Spec
All Aluminum Alloy Conductors Type A3
Code
Name		 Area
Actual		 Equivalent
Copper Area		 Stranding Overall
Diameter		 Weight Rated
Strength		 Maximum DC
Resistance
at 20℃
mm2 mm2 No/mm mm kg/km kN Ω /km
16 18.6 9.8 7/1.84 5.52 50.8 6.04 1.7896
25 29 15.2 7/2.30 6.9 79.5 9.44 1.1453
40 46.5 24.4 7/2.91 8.73 127.1 15.1 0.7158
63 73.2 38.4 7/3.65 10.95 200.2 23.06 0.4545
100 116 61 19/2.79 14 319.3 37.76 0.2877
125 145 76 19/3.12 15.6 399.2 47.2 0.2302
160 186 98 19/3.53 17.7 511 58.56 0.1798
200 232 122 19/3.95 19.8 638.7 73.2 0.1439
250 290 152 19/4.41 22.1 798.4 91.5 0.1151
315 366 192 37/3.55 24.9 1008.4 115.29 0.0916
400 465 244 37/4.00 28 1280.5 146.4 0.0721
450 523 275 37/4.24 29.7 1440.5 164.7 0.0641
500 581 305 37/4.47 31.3 1600.6 183 0.0577
560 651 342 61/3.69 33.2 1795.3 204.96 0.0516
630 732 384 61/3.91 35.2 2019.8 230.58 0.0458
710 825 433 61/4.15 37.4 2276.2 259.86 0.0407
800 930 488 61/4.40 39.6 2564.8 292.8 0.0361
900 1046 549 91/3.83 42.1 2888.3 329.4 0.0321
1000 1162 610 91/4.03 44.3 3209.3 366 0.0289
1120 1301 683 91/4.27 47 3594.5 409.92 0.0258

IEC Spec.
All Aluminum Alloy Conductors Type A2
Code
Name		 Area
Actual		 Equivalent
Copper Area		 Stranding Overall
Diameter		 Weight Rated
Strength		 Maximum DC
Resistance
at 20℃
mm2 mm2 No/mm mm kg/km kN Ω /km
16 18.4 9.8 7/1.83 5.49 50.4 5.43 1.7896
25 28.8 15.3 7/2.9 6.87 78.7 8.49 1.1453
40 46 24.4 7/2.89 8.67 125.9 13.58 0.7158
63 72.5 38.4 7/3.63 10.9 198.3 21.39 0.4545
100 115 61 19/2.78 13.9 316.3 33.95 0.2877
125 144 76 19/3.10 15.5 395.4 42.44 0.2302
160 184 98 19/3.51 17.6 506.1 54.32 0.1798
200 230 122 19/3.93 19.7 632.7 67.91 0.1439
250 288 153 19/4.39 22 790.8 84.88 0.1151
315 363 192 37/3.53 24.7 998.9 106.95 0.0916
400 460 244 37/3.98 27.9 1268.4 135.81 0.0721
450 518 275 37/4.22 29.5 1426.9 152.79 0.0641
500 575 305 37/4.45 31.2 1585.5 169.76 0.0577
560 645 342 61/3.67 33 1778.4 190.14 0.0516
630 725 384 61/3.89 35 2000.7 213.9 0.0458
710 817 433 61/4.13 37.2 2254.8 241.07 0.0407
800 921 488 61/4.38 39.4 2540.6 271.62 0.0361
900 1036 549 91/3.81 41.9 2861.1 305.58 0.0321
1000 1151 610 91/4.01 44.1 3179 339.53 0.0289
1120 1289 683 91/4.25 46.8 3560.5 380.27 0.0258
1250 1439 763 91/4.49 49.4 3973.7 424.41 0.0231

French Sizes
All Aluminum Alloy Conductors ( AAAC )
Code
Name		 Equivalent
Copper Area		 Stranding Overall
Diameter		 Total Area Weight Rated
Strength		 Maximum DC
Resistance
at 20℃
mm2 No/mm mm mm2 kg/km kN Ω /km
22 11.84 7/2.0 6 21.99 60 715 1.5
34.4 18 7/2.5 7.5 34.36 94 1115 0.958
54.6 28.6 7/3.15 9.45 54.55 149 1775 0.603
75.5 41.3 19/2.25 11.25 75.54 208 2455 0.438
117 63.9 19/2.8 14 117 322 3800 0.283
148 80.9 19/3.15 15.75 148.1 407 4810 0.224
181.6 99.2 37/2.5 17.5 181.6 500 5900 0.183
228 124.5 37/2.8 19.6 227.8 627 7405 0.146
288 157.6 37/3.15 22.05 288.3 794 9370 0.115
366 200.1 37/3.55 27.85 366.2 1009 11535 0.0905
570 311.6 61/3.45 31.05 570.2 1574 18530 0.0583
851 464.8 91/3.45 37.95 850.7 2354 27650 0.0391
1144 624.9 91/4.0 44 1143.5 3164 36020 0.0292
1600 872.1 127/4.0 52 1595.9 4425 50270 0.0206
