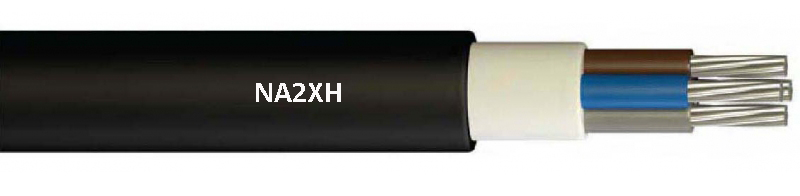

XLPE Halogen Free Power Cable NA2XH Flame Redundant Aluminum Conductor FRNC 1 KV

Name: XLPE Halogen Free Power Cable NA2XH Flame Redundant Aluminum Conductor FRNC 1 KV
Brand: UNI-CABLES
Price: 1 USD

Brand Name : UNI-CABLES

Model Number : NA2XH

Certification : ISO9001

Place of Origin : CHINA

MOQ : 100M

Price : Negotiable

Supply Ability : 7000 Meters per Week

Delivery Time : 15-20 working days

Packaging Details : 200M in Steel Reels

Frequence : 50HZ

Outer sheath : HFFR

Insulation : XLPE 2XI1

Gases corrosivity : IEC 60754

Sheath Color : Black

Minimum installation temperature : -20°C

Contact Now

NA2XH Low Voltage Cable Aluminum Conductor FRNC 1 KV Halogen Free Power Cable

APPLICATION

Singlecore or multicore XLPE-insulated cables with aluminium solid/stranded conductor and halogen-free sheath in acc. with DIN VDE 0276-604 Part 5G Flame retardent acc. IEC 60332-1-2.

NA2XH Cable Especially applied in confition of flame redundant; outdoors, in concrete, indoors and in cable ducts where no mechanical damage is to be expected

CONSTRUCTION

Conductor of sector-shaped solid or round solid/stranded aluminium wires

- insulation of cross-linked polyethylene (XLPE)

-extruded halogen-free filling compound

- flame retardant sheath - Polyoelfin-Compound Type HM4

CONSTRUCTION CHARACTERISTICS
Conductor material	Aluminum
Halogen free	IEC 60754
Outer sheath	HFFR (Halogene Free Flame Retardant)
ELECTRICAL CHARACTERISTICS
Test voltage	4kV
Rated Voltage Uo/U (Um)	0.6/1 kV
Maximum operating voltage	1.2kV
Frequence	50Hz
USAGE CHARACTERISTICS
Minimum installation temperature	-20°C
Maximum operating temperature	90°C
Minimum operating temperature	-40°C
Short-circuit max. conductor temperature	250°C
Fire retardant	IEC 60332-1
Smoke density	IEC 61034
Gases corrosivity	IEC 60754

DIMENSIONS

No. and Nominal cross sectional area of conductors	Nominal insulation thickness	Nominal sheath thickness	Approx. outer diameter	Approx. cable weight	Maximum conductor resistance at 20OC	Current rating
No. and Nominal cross sectional area of conductors	Nominal insulation thickness	Nominal sheath thickness	Approx. outer diameter	Approx. cable weight	Maximum conductor resistance at 20OC	In Air	Buried
No. x mm2	mm	mm	mm	kg/km	Ω/km	A

1x16	0.7	1.4	10.5	135	1.91	74	87
1x25	0.9	1.4	12	185	1.20	108	116
1x35	0.9	1.4	13	235	0.868	132	138
1x50	1.0	1.4	14	245	0.641	162	164
1x70	1.1	1.4	16	300	0.443	206	203
1x95	1.1	1.5	18	400	0.320	254	241
1x120	1.2	1.5	20	470	0.253	297	274
1x150	1.4	1.6	22	570	0.206	341	308
1x185	1.6	1.7	24	700	0.164	395	350
1x240	1.7	1.8	26.5	905	0.125	472	406
1x300	1.8	1.8	29	1,100	0.100	543	457
1x400	2.0	2.0	33	1,445	0.0778	635	521
1x500	2.2	2.1	36	1,780	0.0605	736	603

2 x 16	0.7	1.8	18	405	1.91	74	86
2 x 25	0.9	1.8	21	580	1.20	101	111
2 x 35	0.9	1.8	23.5	740	0.868	122	132
2 x 50	1.0	1.8	26.5	910	0.641	152	159
2 x 70	1.1	1.9	30	1,265	0.443	189	195
2 x 95	1.1	2.0	35	1,675	0.320	232	233
2 x 120	1.2	2.1	38.5	2.025	0.253	270	266
2 x 150	1.4	2.3	42.5	2,475	0.206	308	299
2 x 185	1.6	2.4	47	3,020	0.164	357	340
2 x 240	1.7	2.6	52	3,820	0.125	435	401
3 x 16	0.7	1.8	19	450	1.91	74	86
3 x 25	0.9	1.8	22.5	650	1.20	101	111
3 x 35	0.9	1.8	25	845	0.868	122	132
3 x 50	1.0	1.9	28	1,025	0.641	152	159
3 x 70	1.1	2.1	33	1,240	0.443	189	195
3 x 95	1.1	2.2	37.5	1,620	0.320	232	233
3 x 120	1.2	2.4	41.5	2,335	0.253	270	266
3 x 510	1.4	2.6	46	2,830	0.206	308	299
3 x 185	1.6	2.7	50.5	3,445	0.164	357	340
3 x 240	1.7	2.7	56	4,380	0.125	435	401
4 x 16	0.7	1.8	20.5	525	1.91	74	86
4 x 25	0.9	1.8	24.5	760	1.20	101	111
4 x 35	0.9	1.8	27	995	0.868	122	132
4 x 50	1.0	1.9	31	1,250	0.641	152	159
4 x 70	1.1	2.1	36.5	1,830	0.443	189	195
4 x 95	1.1	2.2	41	2,325	0.320	232	233
4 x 120	1.2	2.4	45.5	2,800	0.253	270	266
4 x 150	1.4	2.5	50	3,410	0.206	308	299
4 x 185	1.6	2.7	56	4,130	0.164	357	340
4 x 240	1.7	2.9	62.5	5,380	0.125	435	401
5 x 16	0.7	1.8	22	600	1.91	74	86
5 x 25	0.9	1.8	26.5	870	1.20	101	111
5 x 35	0.9	1.9	29.5	1,170	0.868	122	132
5 x 50	1.0	2.0	35	1,380	0.641	152	159
