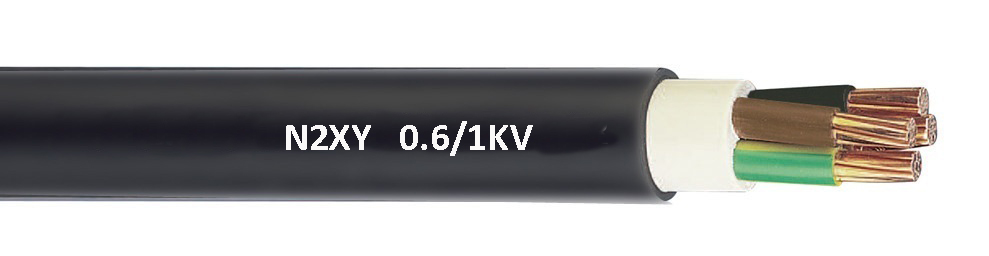

600 1000V Unarmoured Low Voltage Cable N2XY Acc . DIN VDE 0276 Black For Electricity Supply

N2XY Power Cable are unarmoured power and control cables used for electricity supply in Low Voltage (LV) installation systems with a voltage rating of 600/1000V.

These cables can be used for fixed installation in buildings - fixed on cable trays, in free air, within conduits, or in walls – or for underground use in direct burial and in damp environments where there is no risk of mechanical damage.

CONSTRUCTION

Conductor:Cu, class 1 or 2

class 1:solid, round (RE)

class 2:multi wire stranded, round (RM) or sector (SM)

Insulation:XLPE-compound DIX 3

Filler:Wrapped thermoplastic tapes

Sheath:PVC DMV 5

Sheath colour:Black

Technical data

Temperature range:

during installation: -5 °C up to +50 °C

fixed installed: -20 °C up to +70 °C

at short circuit of max. 5s: up to 250 °C

Nominal voltage: Uο/U = 0,6/1 kV

Test voltage: 4 kV

Max. operating voltage in three-phase systems:1,2 kV

Maximal tensile strength: 50 N/mm²

Behaviour in fire: IEC 60332-1

Minimal inner bending radius:

single core: 15D

multi core: 12D
