Brand Name : UNI-CABLES
Model Number : RV-K
Certification : ISO9001
Place of Origin : CHINA
MOQ : 100M
Price : Negotiable
Supply Ability : 7000 Meters per Week
Delivery Time : 15-20 working days
Packaging Details : 200M in Steel Reels
Standard : UNE 21123-2
Filler : Wrapped thermoplastic tapes
Sheath : Flexible PVC type DMV-18
Sheathing material : PVC
Rated voltage : 0.6 / 1 kV
Bend radius : 5 x cable diameter
RV-K XLPE Insulated Low Voltage Indoors and Out Doors Power Distribution Cable
APPLICATION
RV-K is a series of very unique flexible installation cables. The cables are built as flexible installation cables manufactured of PVC. The cables are suited for all use in street lights, industry and building installations. They are very suitable for installations where a flexible connection is needed such as in a motor, generator and similar. The cables can be buried directly in the soil.
CONSTRUCTION
Conductor:Electrolytic annealed Cu, class 5 acc. to IEC 60228
Insulation:XLPE type DIX-3 acc. to HD 603
Filler:wrapped thermoplastic tapes
Sheath:Flexible PVC type DMV-18
Sheath colour: Black
Working temperature:Fixed installation: -40° C to +90° C
Rated voltage:0.6/1 kV
Bend radius:5 x cable diameter
DIMENSIONS
Size mm² | Overall Diameter mm | Weight Kg/km | Current rating 40°C | Current rating 25°C | Size mm² | Overall Diameter mm | Weight Kg/km | Current rating 40°C | Current rating 25°C |
1 x 1.5 | 5.7 | 45 | 19 | 27 | 3 x 25 | 20.0 | 900 | 115 | 106 |
1 x 2.5 | 6.1 | 60 | 27 | 36 | 3 x 35 | 22.7 | 1225 | 143 | 129 |
1 x 4 | 6.7 | 75 | 37 | 46 | 3 x 50 | 24.9 | 1555 | 174 | 152 |
1 x 6 | 7.2 | 95 | 48 | 58 | 3 x 70 | 29.2 | 2170 | 223 | 187 |
1 x 10 | 8.2 | 140 | 67 | 78 | 3 x 95 | 32.5 | 2805 | 271 | 222 |
1 x 16 | 9.2 | 195 | 91 | 100 | 3 x 120 | 36.7 | 3560 | 314 | 253 |
1 x 25 | 10.8 | 285 | 122 | 125 | 3 x 150 | 40.6 | 4415 | 363 | 286 |
1 x 35 | 11.9 | 375 | 153 | 150 | 3 x 185 | 44.3 | 5340 | 414 | 320 |
1 x 50 | 13.5 | 515 | 188 | 185 | 3 x 240 | 50.8 | 7050 | 489 | 370 |
1 x 70 | 15.6 | 710 | 243 | 225 | 3 x 300 | 64.1 | 10705 | 565 | 418 |
1 x 95 | 17.4 | 920 | 298 | 260 | 4 G 1.5 | 9.9 | 140 | 20 | 23 |
1 x 120 | 19.4 | 1160 | 348 | 300 | 4 G 2.5 | 10.9 | 185 | 29 | 30 |
1 x 150 | 21.4 | 1435 | 404 | 340 | 4 G 4 | 12.2 | 255 | 38 | 38 |
1 x 185 | 23.3 | 1735 | 464 | 380 | 4 G 6 | 13.5 | 340 | 49 | 48 |
1 x 240 | 26.6 | 2290 | 552 | 445 | 4 G 10 | 15.8 | 525 | 68 | 64 |
1 x 300 | 30.2 | 2885 | 639 | 500 | 4 G 16 | 183 | 760 | 91 | 82 |
1 x 400 | 34.8 | 3920 | 748 | 590 | 4 x 25 | 22.4 | 1155 | 115 | 106 |
1 x 500 | 39.1 | 5015 | 860 | 670 | 4 x 35 | 25.1 | 1560 | 143 | 129 |
1 x 630 | 43.7 | 6585 | 990 | 790 | 4 x 50 | 27.5 | 2075 | 174 | 152 |
2 x 1.5 | 8.6 | 100 | 23 | 27 | 4 x 70 | 32.3 | 2900 | 223 | 187 |
2 x 2.5 | 9.4 | 130 | 32 | 36 | 4 x 95 | 35.6 | 3735 | 271 | 222 |
2 x 4 | 10.5 | 170 | 44 | 46 | 4 x 120 | 40.5 | 4770 | 314 | 253 |
2 x 6 | 11.6 | 220 | 57 | 58 | 4 x 150 | 44.5 | 5895 | 363 | 296 |
2 x 10 | 13.5 | 330 | 78 | 77 | 4 x 185 | 49.2 | 7190 | 414 | 320 |
2 x 16 | 15.5 | 465 | 104 | 100 | 4 x 240 | 56.4 | 9495 | 489 | 370 |
2 x 25 | 18.8 | 700 | 135 | 128 | 5 G 1.5 | 10.8 | 170 | 20 | 23 |
2 x 35 | 21.2 | 940 | 168 | 154 | 5 G 2.5 | 11.9 | 225 | 29 | 30 |
2 x 50 | 21.3 | 1160 | 204 | 183 | 5 G 4 | 13.4 | 310 | 38 | 38 |
2 x 70 | 24.7 | 1600 | 262 | 224 | 5 G 6 | 14.9 | 420 | 49 | 48 |
2 x 95 | 27.7 | 2075 | 320 | 265 | 5 G 10 | 17.5 | 645 | 88 | 64 |
2 x 120 | 31.3 | 2640 | 373 | 302 | 5 G 18 | 20.2 | 925 | 91 | 82 |
2 x 150 | 34.5 | 3255 | 430 | 342 | 5 G 25 | 24.6 | 1410 | 115 | 106 |
2 x 185 | 37.8 | 3950 | 493 | 383 | 5 G 35 | 27.8 | 1905 | 143 | 129 |
2 x 240 | 43.3 | 5220 | 583 | 442 | 5 G 50 | 32.5 | 2670 | 174 | 152 |
3 G 1.5 | 9.0 | 115 | 23 | 27 | 5 G 70 | 39.6 | 4075 | 223 | 187 |
3 G 2.5 | 9.9 | 155 | 32 | 36 | 5 G 95 | 44.6 | 5320 | 271 | 222 |
3 G 4 | 11.1 | 205 | 44 | 46 | 5 G 120 | 50.4 | 6765 | 314 | 253 |
3 G 6 | 12.3 | 275 | 57 | 58 | 5 G 150 | 55.7 | 8380 | 383 | 288 |
3 G 10 | 14.3 | 415 | 78 | 77 | 7G 1.5 | 11.8 | 210 | - | - |
3 G 16 | 16.5 | 600 | 104 | 100 | 7G 2.5 | 13.0 | 285 | - | - |
![]() |

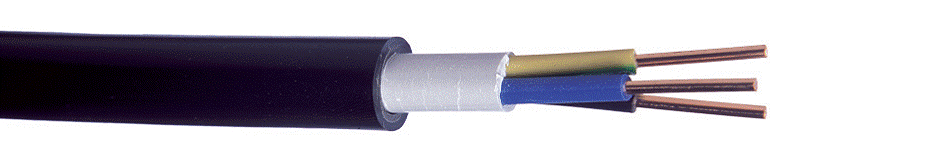

XLPE RV-K Insulated Low Voltage Cable , Indoor Outdoor Power Distribution Cable Images |
