BS6622 Standard 11kv Medium Voltage Cable XLPE SWA Class 2 Semiconductor

Name: BS6622 Standard 11kv Medium Voltage Cable XLPE SWA Class 2 Semiconductor
Brand: UNI-CABLES
Price: 25 USD

Brand Name : UNI-CABLES

Model Number : BS6622 XLPE PVC

Certification : ISO9001

Place of Origin : CHINA

MOQ : 100M

Price : US$25-36 per Meter

Supply Ability : 7000 Meters per Week

Delivery Time : 15-20 working days

Packaging Details : 200M in Steel Reels

Conductor : Class 2 stranded copper conductor

Conductor Screen : Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation : XLPE (Cross-Linked Polyethylene)

Insulating Screen : Semi-conducting XLPE(Cross-Linked Polyethylene)

Metallic Screen : Individual copper wire screen

Armour : SWA (Steel Wire Armoured)

Sheath : MDPE (Medium Density Polyethylene)

Voltage Rating (Uo/U)(Um) : 6.35/11 (12)KV

Contact Now

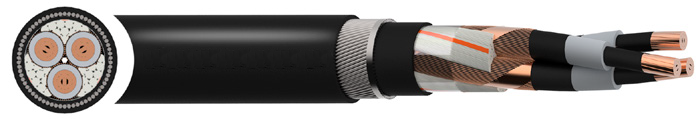

BS6622 Standard 11kv Medium Voltage Cable XLPE MDPE for Underground System

APPLICATION
Power cables for power networks, underground and in cable
ducting.

Voltage Rating (Uo/U)(Um):6.35/11 (12)KV
Temperature Rating:0°C to +90°C
Temperature Index:+280°C
Minimum Bending Radius:12 x overall diameter

Conductor
Class 2 stranded copper conductor according to BS EN 60228(previously BS 6360)
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene) Type GP8 according toBS 7655
Insulating Screen
Semi-conducting XLPE(Cross-Linked Polyethylene)
Separator
Water blocking tape
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Individual copper wire screen according to BS 6622
Filler
PET (Polyethylene Terephthalate) fibres
Separator
Binding tape
Bedding
PVC (Polyvinyl Chloride) Type TM1 according to BS 7655
Armour
SWA (Steel Wire Armoured)
Sheath
PVC (Polyvinyl Chloride) Type TM1 according to BS 7655

Sheath Colour
Red/Black

DIMENSIONS

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	Under Armour	NOMINAL DIAMETER Over Armour	Overall	NOMINAL WEIGHT kg/km
		mm	mm	mm
1	50	21.7	24.9	28.5	1200
1	70	23	26.2	30	1500
1	95	24.7	27.9	31.7	1600
1	120	26.7	29.9	33.9	2100
1	150	27.5	31.5	35.7	2500
1	185	29.3	33.3	37.5	2900
1	240	31.6	35.6	40	3600
1	300	34.6	38.6	43	4300
1	400	37	41	45.8	5200
1	500	40.5	45.5	50.5	6500
1	630	44.6	49.6	54.8	8000
1	800	48.8	53.8	59.2	9850
1	1000	53.5	58.5	64.3	12100
3	25	39	44	48.8	4300
3	35	41.6	46.6	51.6	4700
3	50	44.4	49.4	54.6	5300
3	70	48.1	53.1	58.5	6300
3	95	52	57	62.6	7300
3	120	55.6	60.6	66.6	8400
3	150	58.6	63.6	69.8	9600
3	185	62.7	67.7	74.1	11000
3	240	68.1	74.4	81.2	14000
3	300	73.5	79.8	87	16600
