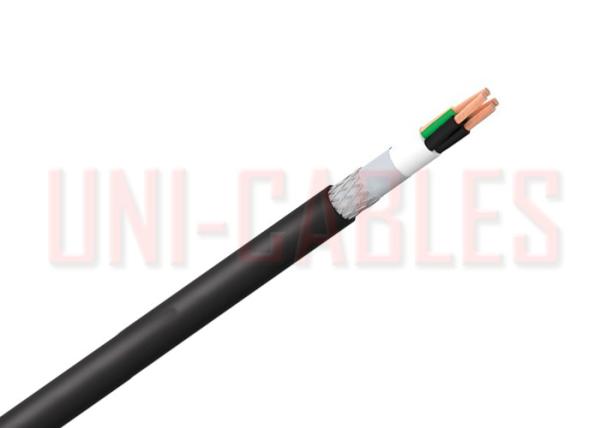

BS EN/IEC 60332-3 Standard Flexible Control Cable SY LSZH GSWB Cable
APPLICATION
Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use in conditions of light mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or moist conditions indoors. The braided screen offers mechanical protection and a level of electro-magnetic shielding. The galvanized coating helps protect against corrosion. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
SY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.
CABLE STANDARDS
VDE0250, BS EN/IEC 60332-3, BS EN/IEC 60754-1 and 2,
BS EN 60754-1 and 2, BS EN/IEC 61034-1, BS EN 60228,
BS EN 50363
Note
SY Cables are not suitable for direct connection into the main service fuse.
DIMENSIONS
UNI-Cables
PART NO. |
NO. OF
CORES |
NOMINAL CROSS
SECTIONAL AREA |
NOMINAL
THICKNESS OF INSULATION |
NOMINAL
THICKNESS OF BEDDING |
NOMINAL
DIAMETER OF GSWB |
NOMINAL
THICKNESS OF SHEATH |
NOMINAL
OVERALL DIAMETER |
NOMINAL
WEIGHT |
| mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
| UNISYLSZH2015 |
2 |
1.5 |
0.5 |
0.5 |
0.24 |
0.8 |
8 |
109 |
| UNISYLSZH3010 |
3 |
1 |
0.5 |
0.5 |
0.24 |
1 |
8 |
114 |
| UNISYLSZH3015 |
3 |
1.5 |
0.5 |
0.5 |
0.24 |
1 |
9 |
138 |
| UNISYLSZH3025 |
3 |
2.5 |
0.6 |
0.5 |
0.24 |
1 |
10 |
188 |
| UNISYLSZH3040 |
3 |
4 |
0.6 |
0.6 |
0.24 |
1 |
12 |
256 |
| UNISYLSZH3060 |
3 |
6 |
0.7 |
0.6 |
0.24 |
1.1 |
14 |
352 |
| UNISYLSZH4015 |
4 |
1.5 |
0.5 |
0.5 |
0.24 |
1 |
10 |
161 |
| UNISYLSZH4025 |
4 |
2.5 |
0.6 |
0.5 |
0.24 |
1 |
11 |
223 |
| UNISYLSZH4040 |
4 |
4 |
0.6 |
0.6 |
0.24 |
1 |
13 |
310 |
| UNISYLSZH4060 |
4 |
6 |
0.7 |
0.6 |
0.24 |
1.1 |
15 |
430 |
| UNISYLSZH5015 |
5 |
1.5 |
0.5 |
0.5 |
0.24 |
1 |
10 |
189 |
| UNISYLSZH5025 |
5 |
2.5 |
0.6 |
0.6 |
0.24 |
1 |
12 |
264 |
| UNISYLSZH5060 |
5 |
6 |
0.7 |
0.6 |
0.24 |
1.2 |
16 |
523 |
| UNISYLSZH510 |
5 |
10 |
0.8 |
0.8 |
0.3 |
1.2 |
20 |
822 |
| UNISYLSZH516 |
5 |
16 |
0.9 |
0.8 |
0.3 |
1.4 |
24 |
1217 |
CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables
| NOMINAL CROSS SECTIONAL AREA |
MAXIMUM DIAMETER OF WIRES IN
CONDUCTOR |
MAXIMUM RESISTANCE OF CONDUCTOR
AT 20ºC |
| mm² |
mm |
Plain Wires
ohms/km |
| 1 |
0.21 |
19.5 |
| 1.5 |
0.26 |
13.3 |
| 2.5 |
0.26 |
7.98 |
| 4 |
0.31 |
4.95 |
| 6 |
0.31 |
3.3 |
| 10 |
0.41 |
1.91 |
| 16 |
0.41 |
1.21 |
The above table is in accordance with BS EN 60228 (previously BS 6360)
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity at 30oC
NOMINAL CROSS SECTIONAL AREA
mm² |
CURRENT CARRYING CAPACITY |
| In Conduit |
In Air |
| Amps |
Amps |
| 1 |
12 |
20 |
| 1.5 |
15 |
24 |
| 2.5 |
20 |
32 |
| 4 |
25 |
42 |
| 6 |
33 |
54 |
| 10 |
45 |
73 |
| 16 |
61 |
98 |
Voltage Drop
NOMINAL CROSS SECTIONAL AREA
mm2 |
TWO CORE CABLE DC
mV/A/m |
SINGLE-PHASE
TWO CORE CABLE AC
mV/A/m |
THREE-PHASE
THREE OR FOUR CORE CABLE AC
mV/A/m |
| 1 |
44 |
44 |
38 |
| 1.5 |
29 |
29 |
25 |
| 2.5 |
18 |
18 |
15 |
| 4 |
11 |
11 |
9.5 |
| 6 |
7.3 |
7.3 |
6.4 |
| 10 |
4.4 |
4.4 |
3.8 |
| 16 |
2.8 |
2.8 |
2.4 |
DE-RATING FACTORS
| NO. OF CORES |
5 |
7 |
10 |
14 |
19 |
24 |
44 |
48 |
| DE-RATING FACTOR |
0.72 |
0.63 |
0.56 |
0.51 |
0.45 |
0.42 |
0.34 |
0.33 |
