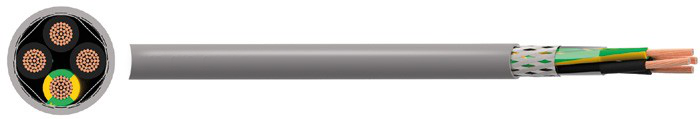

IEC Standard 60754 Control Cable Type CY LSZH Control Flexible Cable
APPLICATION
For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use when temporarily moved, and in conditions of medium mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or damp conditions indoors.
CY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.
CABLE STANDARDS
BS EN/IEC 60754-1, BS EN/IEC 60332-1-2
DIMENSIONS
UNI-Cables
PART NO. |
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA
mm² |
NOMINAL OVERALL DIAMETER
mm |
NOMINAL WEIGHT
kg/km |
| UNI02005CYLSZH |
2 |
0.5 |
5.7 |
35 |
| UNI020075CYLSZH |
2 |
0.75 |
6.1 |
45 |
| UNI02010CYLSZH |
2 |
1 |
6.3 |
57 |
| UNI02015CYLSZH |
2 |
1.5 |
7.3 |
75 |
| UNI02025CYLSZH |
2 |
2.5 |
8.7 |
107 |
| UNI03005CYLSZH |
3 |
0.5 |
6 |
53 |
| UNI030075CYLSZH |
3 |
0.75 |
6.4 |
63 |
| UNI03010CYLSZH |
3 |
1 |
6.6 |
73 |
| UNI03015CYLSZH |
3 |
1.5 |
7.7 |
95 |
| UNI03025CYLSZH |
3 |
2.5 |
9.2 |
140 |
| UNI04005CYLSZH |
4 |
0.5 |
6.4 |
62 |
| UNI040075CYLSZH |
4 |
0.75 |
6.9 |
89 |
| UNI04010CYLSZH |
4 |
1 |
7.1 |
86 |
| UNI04015CYLSZH |
4 |
1.5 |
8.4 |
118 |
| UNI04025CYLSZH |
4 |
2.5 |
10 |
172 |
| UNI05005CYLSZH |
5 |
0.5 |
6.9 |
73 |
| UNI050075CYLSZH |
5 |
0.75 |
7.5 |
89 |
| UNI05010CYLSZH |
5 |
1 |
7.7 |
102 |
| UNI05015CYLSZH |
5 |
1.5 |
9.1 |
141 |
| UNI07005CYLSZH |
7 |
0.5 |
7.5 |
92 |
| UNI070075CYLSZH |
7 |
0.75 |
8.2 |
115 |
| UNI07010CYLSZH |
7 |
1 |
8.4 |
139 |
| UNI07015CYLSZH |
7 |
1.5 |
10 |
181 |
CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables
NOMINAL CROSS SECTIONAL AREA
mm² |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C
ohms/km |
| 0.5 |
39 |
| 0.75 |
26 |
| 1 |
19.5 |
| 1.5 |
13.3 |
| 2.5 |
7.98 |
The above table is in accordance with BS EN 60228 (previously BS 6360)
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity at 30ºC
NOMINAL CROSS SECTIONAL AREA
mm² |
CURRENT RATING
Amps |
| 0.5 |
9 |
| 0.75 |
12 |
| 1 |
15 |
| 1.5 |
18 |
| 2.5 |
26 |
The above table is a guide extracted from DIN VDE 0298 Part 4 and DIN 0100 Part 430
DE-RATING FACTORS
| NO. OF CORES |
5 |
7 |
10 |
14 |
19 |
24 |
44 |
48 |
| DE-RATING FACTOR |
0.72 |
0.63 |
0.56 |
0.51 |
0.45 |
0.42 |
0.34 |
0.33 |
